Energy: Forms, Transformation, Transfer, and Conservation
Transformations and transfers of energy within a system usually result in some energy being released into its su…
Item RG170002: Which energy flow diagram represents the flow of energy when a wind-up car is wound and then let go?
A child is playing with a wind-up toy car, pictured below. The child winds the car’s spring by using the wind-up key in the back of the car. A spring inside the car stores the energy the child has transferred to the car. As the spring is released, the car travels across the floor.
A student would like to use an energy flow diagram to illustrate the flow of energy in this situation. An energy flow diagram is a representation of the transfers of energy in a system. The arrows indicate the direction energy is transferred.

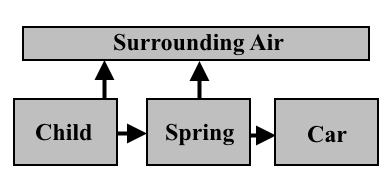

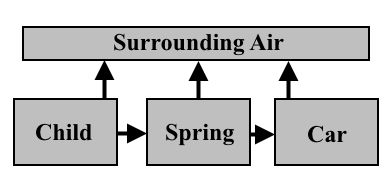

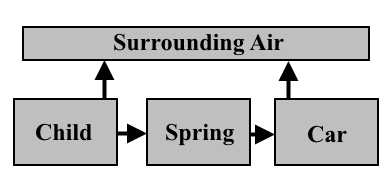

Which of the following energy flow diagrams correctly identifies the flow of energy in the situation described above? (Assume that the wind-up car starts out at the same temperature as the air.)
